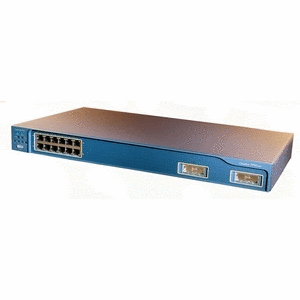

JUAL Switch Cisco WS-C2950G-12-EI

pentium87

Kondisi Barang : Bekas

Harga :

Lokasi Seller : DKI Jakarta

Description :

Jual Switch Cisco WS-C2950G-12-EI - BEKAS msh bagus.

Rp. 4.500.000 (NEGO)

Hub.

Mahdi

08121063502

Fitur dan Spec:

Cisco Catalystr 2950G-12 is a member of the Catalyst 2950 Series Intelligent Ethernet Switches, and is a fixed-configuration, stackable switch that provides wire-speed Fast Ethernet and Gigabit Ethernet connectivity for midsized networks and the metro access edge. The Catalyst 2950 Series is an affordable product line that brings intelligent services, such as enhanced security, high availability and advanced quality of service (QoS), tothe network edgewhile maintaining the simplicity of traditional LAN switching. When a Catalyst 2950 Switch is combined with a Catalyst 3550 Series Switch, the solution can enable IP routing from the edge to the core of the network.

Embedded in Catalyst 2950 Series switches is the Cisco Cluster Management Suite (CMS) Software, which allows users to simultaneously configure and troubleshoot multiple Catalyst desktop switches using a standard Web browser. In addition, Cisco CMS Software provides new configuration wizards that greatly simplify the implementation of converged applications and network-wide services.

Cisco WS-C2950G-12-EI General Information

Manufacturer: Cisco Systems, Inc

Brand Name: Cisco

Product Line: Catalyst

Product Series: 2900

Product Name: Catalyst 2950G-12 Ethernet Switch

Product Type: Ethernet Switch

Cisco WS-C2950G-12-EI Interfaces/Ports

Number of Ports: 12

Fast Ethernet Port: Yes

Interfaces/Ports: 1 x RJ-45 Console Management

Interfaces/Ports: 12 x RJ-45 10/100Base-TX LAN

Cisco WS-C2950G-12-EI Media & Performance

Connectivity Media: Category 3, 4, 5 UTP 10Base-T

Connectivity Media: Category 5 UTP 100Base-TX

Performance: 13.6Gbps Switching Fabric

Performance: 6.4Gbps Forwarding Bandwidth

Performance: 4.8Mpps Forwarding Rate

Cisco WS-C2950G-12-EI I/O Expansions

Number of Expansion Slots: 2

Expansion Slots: (2 Total) GBIC

Cisco WS-C2950G-12-EI Network & Communication

Address Table: 8000 MAC Addresses

Cisco WS-C2950G-12-EI Management & Protocols

Manageable: Yes

Cisco WS-C2950G-12-EI Memory

Flash Memory: 8MB

Cisco WS-C2950G-12-EI Software

Operating System:

Enhanced Software Image (EI) installed

Enhanced Software Image (EI) installed

Cisco WS-C2950G-12-EI Controls/Indicators

Status Indicators: Per-port status LEDs:

Link integrity

Disabled

Activity

Speed

Full-duplex

System status LEDs:

System

RPS

Bandwidth utilization

Cisco WS-C2950G-12-EI Reliability

MTBF: 482776HourPredicted

Cisco WS-C2950G-12-EI Power Description

Input Voltage: 110V AC

Input Voltage: 220V AC

Input Voltage Range: 100V AC to 127V AC

Frequency: 50 Hz to 60 Hz

Power Consumption: 30 W Operating

Power Source: Power Supply

Redundant Power Supply: Yes

Cisco WS-C2950G-12-EI Environmental Conditions

Temperature: -13 degrees F (-25.0 degrees C) to 158 degrees F (70.0 degrees C) Storage

Temperature: 32 degrees F (0.0 degrees C) to 113 degrees F (45.0 degrees C) Operating

Humidity: 10% to 85% Non-condensing Relative Humidity Operating

Altitude: 15000 ft Maximum Storage

Altitude: 10000 ft Maximum Operating

Cisco WS-C2950G-12-EI Physical Characteristics

Dimensions: 1.72 Height x 17.5 Width x 9.52 Depth

Shipping Dimensions: 8 Height x 12.5 Width x 22 Depth

Weight: 6.5lb

Cisco WS-C2950G-12-EI Miscellaneous

Additional Information:

The supplied AC power cord should be used to connect the AC power connector to an AC power outlet

250-port-based VLANS

Configurable maximum transmission unit (MTU) of up to 1530 bytes

The supplied AC power cord should be used to connect the AC power connector to an AC power outlet

250-port-based VLANS

Configurable maximum transmission unit (MTU) of up to 1530 bytes

Cisco WS-C2950G-12-EI Management & Protocols
