[diansastro]

Kondisi Barang : Bekas

Harga :



Lokasi Seller : Jawa Barat


Description :

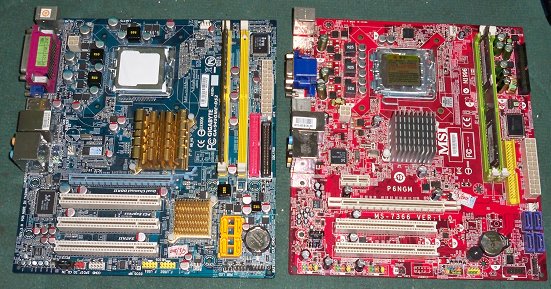

1. Socket 775 - Intel 945G - GA-945GME-DS2 + Ram DDR2 1GB SOLD





2. Socket 775 MSI P6NGM MS-7366 + Ram DDR2 1GB

Supports Socket 775 for Intel� Core 2 Quad, Core 2 Duo, P4, P4EE, Pentium D, Pentium XE processors.


[/spoiler][spoiler=open this] for spek:






CPU



� Supports Socket 775 for Intel� Core 2 Quad, Core 2 Duo, P4, P4EE, Pentium D, Pentium XE processors.

� Supports FSB 1333/1066/800/533MHz.

� Supports EIST technology.

� Supports Intel� Hyper-Threading technology.

Please refer to CPU Support for compatible CPU; the above description is for reference only.





Chipset



� NVIDIA� MCP73PV Chipset

- Supports Dual View function (D-sub or HDMI + PCIE graphic card, for NVIDIA graphic cards only)

- The additional NVIDIA PCIE graphic card needs no extra drivers installed.





Main Memory



� Supports single channel DDR2 533/667/800

� Two 240-pin/1.8V DDR2 DIMMs.

� Supports a maximum memory size up to 4GB





Slots



� One PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant)

� One PCI Express x1 slot (support PCI Express Bus specification v1.0a compliant)

� Two 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface)





On-Board IDE



� An IDE controller on the NVIDIA� MCP73PV

- Supports PIO, Bus Master and Ultra DMA133/100/66 operation modes.

- Can connect up to 2 IDE devices.







On-Board SATA



� NVIDIA� MCP73PV supports 4 SATA II ports (SATA 1 to 4).

- Transfer rate is up to 3Gb/s.



NV RAID



- SATA1~4 support RAID 0/1/5/0+1, JBOD



MSI Reminds You...

� The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.





Audio



� Chip integrated by Realtek� ALC888

- Flexible 8-channel audio with jack sensing

- Compliant with Azalia 1.0 spec.





LAN



- Supports 10/100/1000 Fast Ethernet by Realtek� 8211BL





Internal I/O Connectors



- ATX 24-Pin power connector

- ATX 4-pin 12V power connector

- CPU x 1 / System FAN x 1 connector

- CD-in connector

- Front panel audio connector

- Front panel connector

- 1 x SPDIF out connector

- 3 x USB 2.0 connectors

- 1 x Floppy disk drive connector

- 4 x serial ATA connectors

- 1 x serial port connector

- 1 x ATA133 connectors

- 1 x TPM connector (optional)

- Chassis intrusion switch connector

- Clear CMOS jumper

MSI Reminds You...

� The floppy disk cable will be optional.





Back Panel I/O Ports



- 1 x PS/2 Keyboard



- 1 x PS/2 Mouse

- 1 x 6 in 1 Audio jack

- 4 x USB 2.0 ports

- 1 x RJ45 LAN Jack

- 1 x Graphic Card port (D-sub)

- 1 x DVI port





BIOS



� The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.

� The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.





Dimension



� 24.4cm(L) x 22.0cm(W) M-ATX Form Factor



Mounting



� 6 mounting holes.









Harga Paket 350rb

Harga mainboardnya saja 260rb



Kelengkapan Batangan saja.



Garansi: 1 minggu

COD Bandung, Caheum, Cibiru, Cileunyi, Jatinangor, Sumedang

Lokasi TS= Tanjungsari



Replay POST Jangan PM

or

SMS = OK { 085220487283 }



(LiveBeta kaksus ERROT, PM nya suka di bilang Penuh PM ente gan))
