JUAL ecs p4m 800pro v3.0 ===fast sale==

[afgansadis]

Kondisi Barang : Baru

Harga :



Lokasi Seller : DKI Jakarta


Description :

==sold out==

hallo all...



aku mau jual mainboard nih.

dah ga kepake soalnya, dah ganti baru.



merk ECS. type : p4m800Pro V3.0



untuk spek lebih jelas ada disini :



Link ECS P4m800pro !!!



atau di sini:


[/spoiler][spoiler=open this] for spek ECS P4m800pro:




CPU � LGA775 socket for latest Intel Core 2 Duo / Pentium D / Pentium 4 / Celeron D processor

� FSB 1066/800/533 MHz

� Support Hyper-Threading Technology CPU

CHIPSET � VIA� P4M800Pro & VT8237R+

� North Bridge: VIA� P4M800Pro

� South Bridge: VIA� VT8237R+

GRAPHICS � Integrated S3 UniChrome Pro 2D/3D Graphics

� Share memory : 64MB

MEMORY � Single-channel DDR memory architecture

� 2 x 184-pin DDR DIMM socket support up to 2 GB

� 2 x 240-pin DDR2 DIMM socket support up to 2 GB

� Support DDR400/333 DDR SDRAM or DDR2 533 DDR2 SDRAM

Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows� 32-bit OS.

For Windows� 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT � 1 x AGP 8X slot

� 3 x PCI slots

� 1 x CNR slot

STORAGE � Supported by VIA VT8237R+

� 4 x Ultra DMA133/100/66 devices

� 2 x Serial ATA devices

� RAID0 & RAID1 configuration

AUDIO � Realtek ALC655 6-Channel audio CODEC

� Compliant with AC'97 2.3 specification

LAN � VIA� VT6103L 10/100 Mbps Fast Ethernet PHY

REAR PANEL I/O � 1 x PS/2 keyboard & PS/2 mouse connectors

� 1 x Parallel port (LPT)

� 1 x Serial port (COM1)

� 1 x VGA port

� 4 x USB ports

� 1 x RJ45 LAN connector

� 1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS � 1 x 24-pin ATX Power Supply connector

� 1 x 4-pin ATX 12V connector

� 1 x FDD connector

� 2 x IDE connectors

� 2 x Serial ATA connectors

� 2 x USB 2.0 headers support additional 4 USB 2.0 Ports

� 1 x IrDA for SIR header

� 1 x Front panel switch/LED header

� 1 x Front panel audio header

� 1 x CD in header

� CPUFAN/SYSFAN connectors

SYSTEM BIOS � AMI BIOS with 4Mb Flash ROM

� Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

� Supports ACPI revision 1.0 specification

FORM FACTOR � Micro-ATX Size, 244mm*244mm

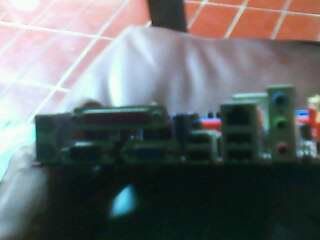

photo disini: (maap jelek pake VGA hp Cina)





















masi segelan dari ECS biosnya bos... !!!





sedikit kekurangan :



salah satu kunci buat memori ilang. tapi perform masi ok.



kelengkapan :

- tanpa back panel

- tanpa driver

- jadi cuma Mainboard aja.



main board ini masih berjalan sempurna, ga rusak, masi bagus. kecuali ya itu kekurangannya seperti yg di photo salah satu kunci buat memori ilang.



kata CPU-Z







untuk harga best offer aja.

yang mau beli ketemuan aja diseputaran CIledug - tangerang selatan



untuk penawaran harga silahkan SMS/Phone :

021-995.90.912
